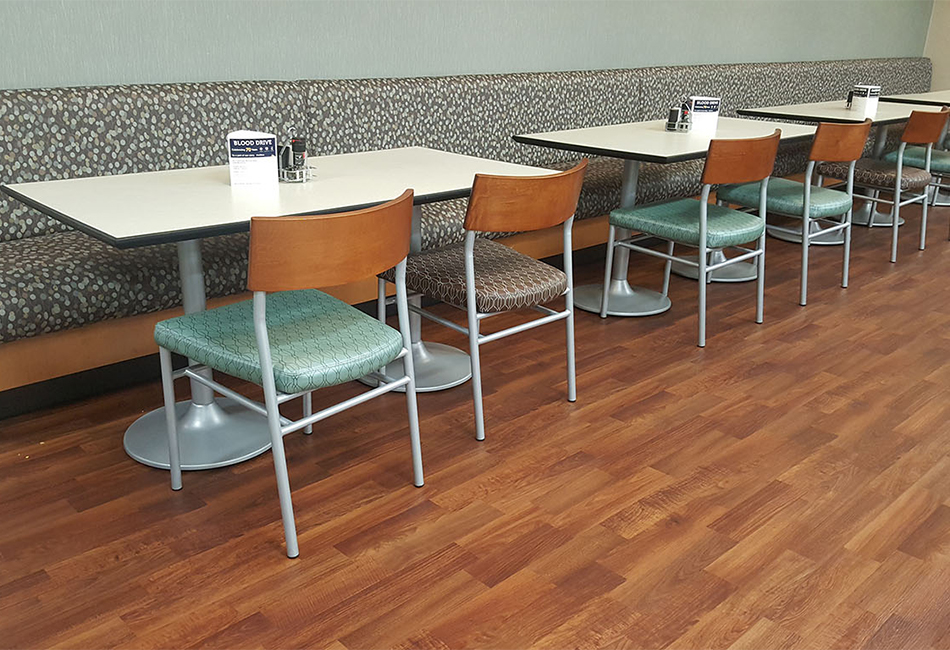

INSTALLATIONS

WH Whitfield

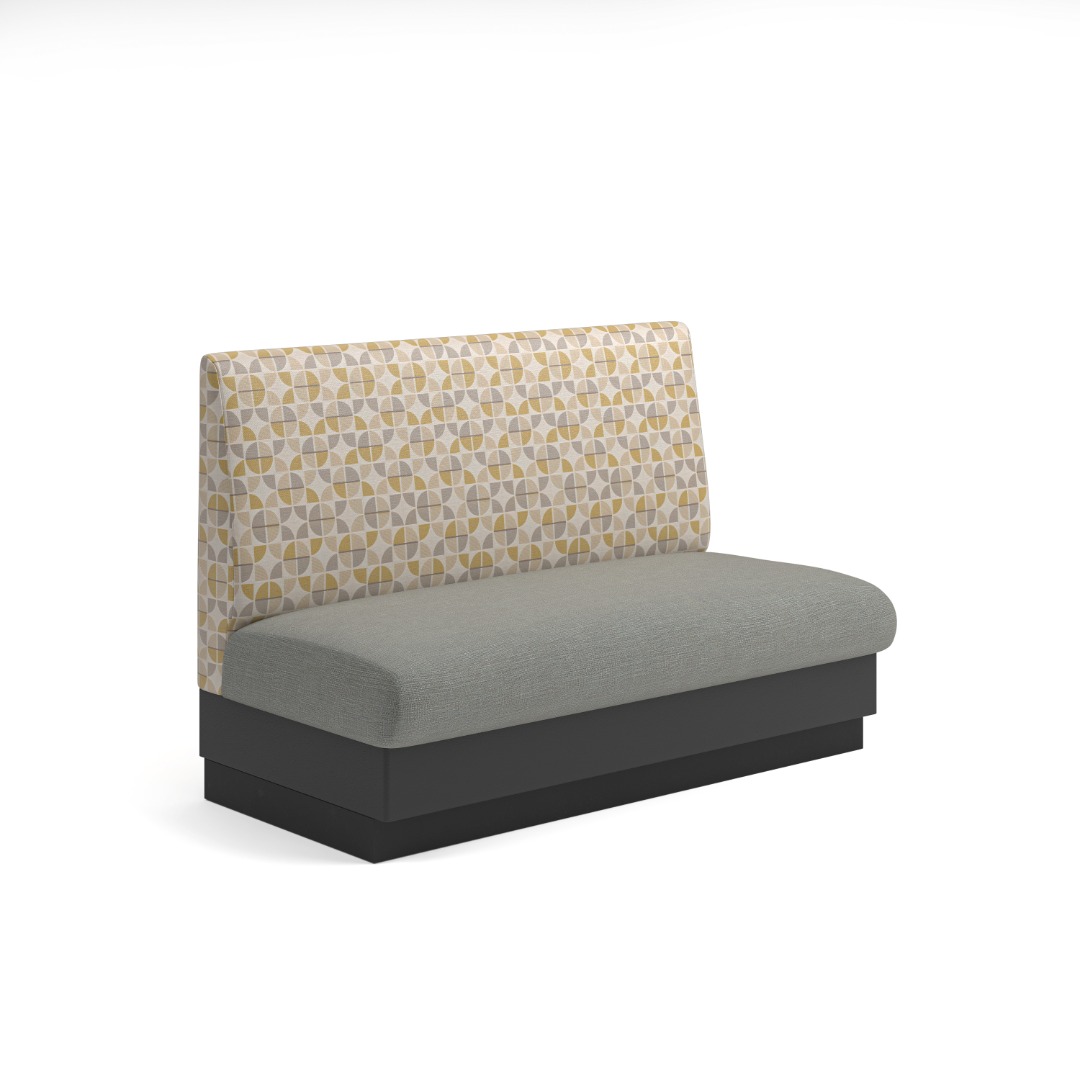

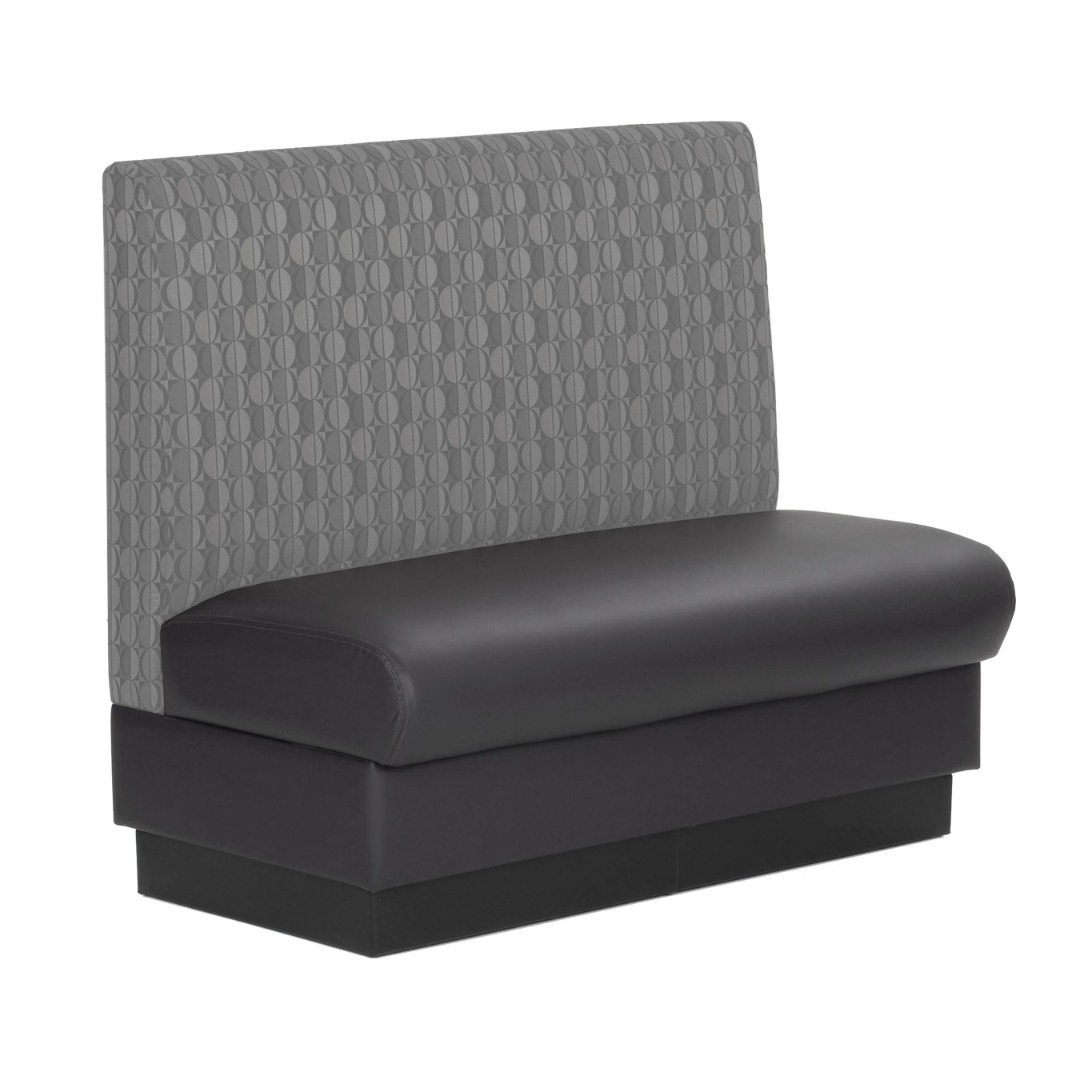

Description

Dining booth with removable waterfall seat. Available in multiple heights and optional wipeout channel.

COM Required: Features

  • Removable Waterfall Seat
  • Spring Seat
  • Upholstered Back Pad
  • Black Vinyl Base
  • Freestanding single booths or wall benches must be anchored to the floor

Options

  • Wood or Laminate Base
  • Upholstered Wipeout Channel
  • Upholstered Outside Back : Add AA to Model number .4 yds per ft.
  • Optional Lengths: Standard Deuce Length to 36" / 37" to Standard/Double Length / 49" to 60" / Single over 60"

" Single booths are not intended to be modular or used to create a wallbench. If a wallbench is needed please use the wallbench specifications, model number, and pricing per linear foot."

Laminates
2D
3D
Revit
SketchUp
DIMENSIONS & WEIGHT
Single WH12

26D x 48L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 12-36 4 YDS
WH 12-42 4.25 YDS
WH 12-48 4.5 YDS

Double WH22

48D x 48L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 22-36 5.5 YDS
WH 22-42 6 YDS
WH 22-48 6.5 YDS

Deuce Single WH16

26D x 30L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 16-36 3.5 YDS
WH 16-42 3.75 YDS
WH 16-48 4 YDS

Deuce Double WH26

48D x 30L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 26-36 5 YDS
WH 26-42 5.25 YDS
WH 26-48 6 YDS

1/4 Circle WH31

26D x 48L x 43L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 31-36 5,5 YDS
WH 31-42 5.75 YDS
WH 31-48 6 YDS

1/2 Circle WH32

26D x 48L x 86L x 48L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 32-36 10.5 YDS
WH 32-42 10.5 YDS
WH 32-48 11.5 YDS

3/4 Circle WH33

26D x 48L x 86L x 86L x 48L x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 33-36 15.5 YDS
WH 33-42 18 YDS
WH 33-48 19 YDS

Wall Bench WH40

26D x 36H,42H or 48H
Seat H: 18, Seat D: 20.5

WH 40-36 1.5 YDS
WH 40-42 1.5 YDS
WH 40-48 1.66 YDS
